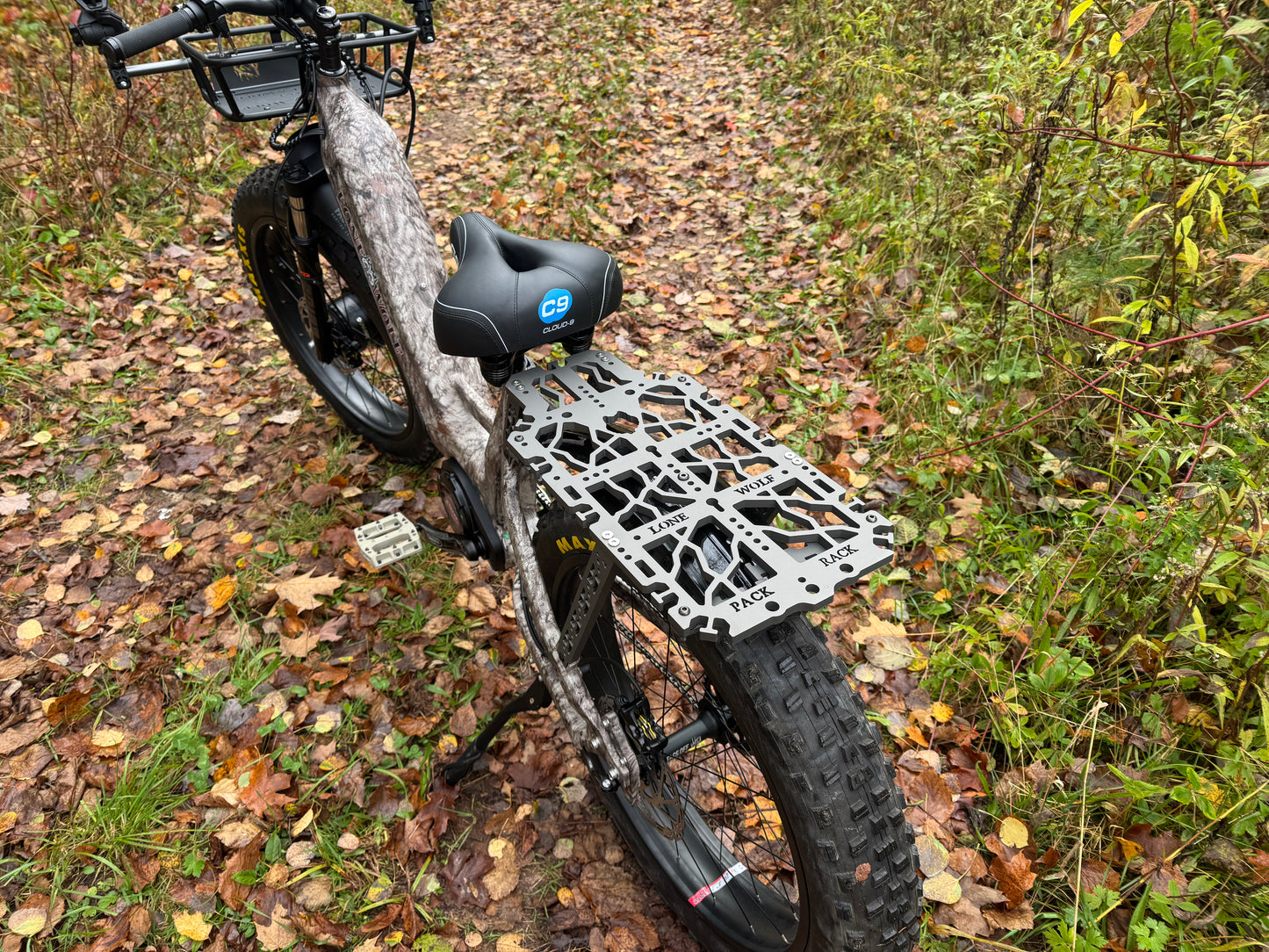

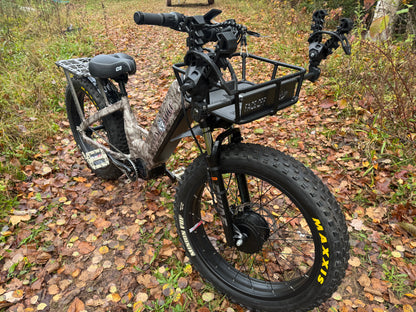

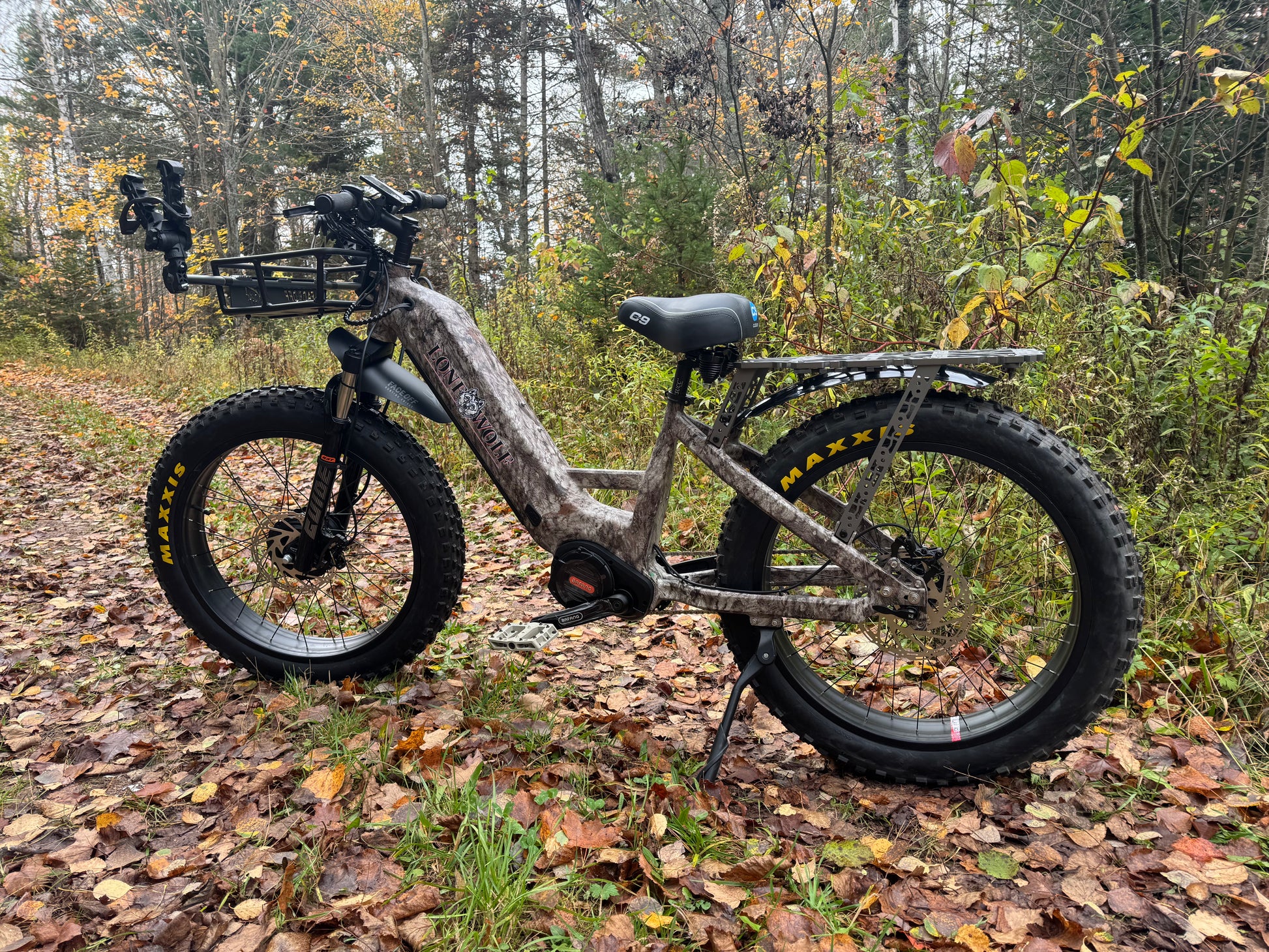

Lone Wolf® Custom Gear K9 MTM - Middrive with front hub motor - 52v

First of its kind - single speed AWD middrive hill climbing machine. The Lone Wolf Custom Gear MTM " Mountain Man" was designed to tackle the most challenging terrain imaginable. The mountains are a graveyard for ebike design. The MTM project was born with the goal to design a bike that that was not only geared to climb but featured a dual motor system capable of operating in steep snow and loose terrain.

True to the K9 lineup, the Patent pending Pack Rack rear rack integrates with all the LWCG stands. Specially programmed with level 1 as a "Climb Mode" that limits the max speed to 8 mph. This gives the K9 MTM single speed the feel of having 2 separate gears and greater throttle control. By limiting the max speed, you also reduce the noise from the motor which allows for a stealthy approach as you approach your hunting location. Packed with high end components the K901 is fully loaded. By adding the front 750w Bafang hub motor we were able to bump up the max speed to over 20 mph. The K9 MTM is geared to outclimb the vast majority of ebikes with derailleurs. The K9 MTM comes in 2 frame sizes. The Large frame is recommended for riders 5'10" and up. This bike is the ultimate frame for taller riders as we were able to extend the wheelbase to provide an extremely responsive angle for the front fork. The Medium frame is recommended for riders 5'5" and up and has a 2" lower minimum seat height. All K9 MTM bikes come standard with front basket, rear Pack Rack, fenders, Cloud 9 seat and ship with Tannus liners and FlatOut installed

MOTOR: Bafang M620 Ultra. Torque sensing 1000W midrive

FRONT MOTOR: Bafang H550 hub motor

BATTERY: 52v 25ah Samsung cell

CHARGER: 58.8 5a DISPLAY: DPC-18 color display

FRONT SUSPENSION: KKE Inverted Thru Axle Front Suspension 140mm

FRAME: 6061 Aluminum Alloy

HEADSET: WolfTooth upper

CHAIN DRIVE: Shadow Cog with Extra Thick Chain

RIMS: 26" x 100mm black alloy

BRAKES: 203mm Tektro E725 Quad Piston Hydraulic

TIRES: 4.8" Maxxis Minion

MINIMUM SEAT HEIGHT: 31" - 35" depending on model

HANDLEBAR WIDTH: 25" handlebars

WEIGHT: approx 80 lbs

**front and rear fenders/rear rack/headlight included**

**FaceOff Bigfoot Star Ratchet Hub - Extreme Torque** Manufactured to withstand massive torque. No-Nonsense Rear hub that is generally considered the strongest ebike hub on the market. Tooled steel freehub body and a beefed-up star ratchet engagement system. The star ratchet hub can be assembled and disassembled with no specialty tools, resulting in easy access to bearings and freehub body replacements. The star ratchet hub can be easily greased for near silent operation ($300 upgrade)**

**Programmable Bafang G510 Ultra motor. Classified as a class 2 electric bicycle - not capable of exceeding 20 mph with the power of the motor only - Federal, Local and State Law classifications can vary. Individual interpretations can vary. Not responsible for any civil infraction, misdemeanor or felony resulting from the operation of the FaceOff K901. Check local laws for additional restrictions. **

**Bikes may be pictured with some optional equipment. Due to supply issues, some components may be switched for parts of equal quality without notice, some bikes pictured with optional equipment**
